UV Guard S-Series
SKU: S-Series-1
Categories: UV Guard
Description
For pricing information, please call 07 3355 1591 or fill out our enquiry form here.
Versatile UV water disinfection for moderate-flow Industrial and Commercial applications. UV Guard’s S-Series is a robust, WaterMarkcertified UV water disinfection system. With 26 models and a series of highly customisable features, it offers an extremely versatile solution for industrial and commercial applications with flows up to 50m3/hour.
Product Specifications
| Model | Flow Rate@ 30mJ/cm2 | Flow Rate @40mJ/cm2 | Inlet/Outlet |
| S20 | 0.52 m3/hr | 0.39 m3/hr | ½”, ¾” BSPT |
| S30 | 1.35 m3/hr | 1.01 m3/hr | ¾”, 1” BSPT |
| S40-62 | 2.19 m3/hr | 1.64 m3/hr | 1” BSPT |
| S40-76 | 2.94 m3/hr | 2.2 m3/hr | 1”, 1 ½” BSPT |
| S40X2 | 5.64 m3/hr | 4.23 m3/hr | 2” BSPT |
| S55 | 4.86 m3/hr | 3.64 m3/hr | 1” BSPT |
| S75 | 6.47 m3/hr | 4.85 m3/hr | 1”, 1 ½” BSPT |
| S80 | 5.67 m3/hr | 4.25 m3/hr | 2” BSPT |
| S80-100 | 8.66 m3/hr | 6.49 m3/hr | 2” BSPT |
| S80X2 | 11.35 m3/hr | 8.51 m3/hr | 2” BSPT |
| S105 | 8.27 m3/hr | 6.2 m3/hr | 1”, 1 ½” BSPT |
| S125 | 9.07 m3/hr | 6.8 m3/hr | 2” BSPT |
| S125-100 | 13.74 m3/hr | 10.3 m3/hr | 2” BSPT |
| S125X2 | 18.14 m3/hr | 13.6 m3/hr | 2” BSPT |
| S172 | 12.28 m3/hr | 9.21 m3/hr | 2” BSPT |
| S172-100 | 18.6 m3/hr | 13.95 m3/hr | 2” BSPT |
| S172X2 | 24.54 m3/hr | 18.4 m3/hr | 2” BSPT |
| S160 | 14.63 m3/hr | 10.97 m3/hr | 2” BSPT |
| S160-100 | 22.2 m3/hr | 16.65 m3/hr | 2” BSPT, 3” PN16 Flange |
| S160X2 | 29.26 m3/hr | 21.94 m3/hr | 2” BSPT |
| S160-100X2 | 44.4 m3/hr | 33.3 m3/hr | 3” BSPT |
| S245 | 16.82 m3/hr | 12.61 m3/hr | 2” BSPT |
| S245X2 | 33.63 m3/hr | 25.22 m3/hr | 2” BSPT |
| S245-100 | 35.14 m3/hr | 26.36 m3/hr | 2” BSPT, 3” PN16 Flange |
| S245-100X2 | 70.28 m3/hr | 52.71 m3/hr | 3” BSPT |
| S440 | 45.14 m3/hr | 33.85 m3/hr | 3” PN16 Flange |

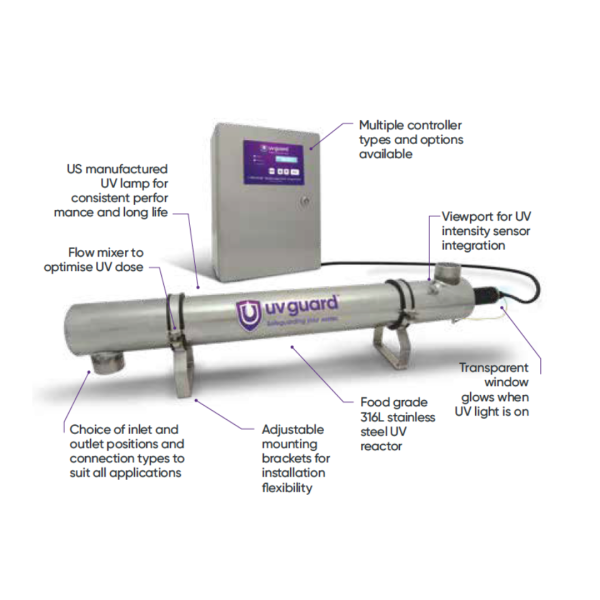

System Benefits –
- Certified to Australian WaterMark (Level 1).
- Robust and durable food grade 316L stainless steel UV reactor.
- Multiple inlet and outlet options to suit any application – BSP, sanitary or flanged in L or Z shape configuration.
- American manufactured UV lamp types for different uses – Low Pressure, Low Pressure High Output, Low Pressure Amalgam and ozone producing.
- Internal flow mixer – optimises UV exposure of all liquid passing through UV reactor.
- Optional controller features – you choose exactly what you need – indoor or weatherproof, UV lamp safety devices, UV intensity monitoring, supervisory controller integration and more.
- Convenient view port and transparent lamp lead window for UVi sensor integration and visual UV lamp inspection.
- Adjustable mounting brackets – maximises installation flexibility – UV reactor can be rotated 180 degrees.
