UV Guard MPX-Series
Description
For pricing information, please call 07 3355 1591 or fill out our enquiry form here.

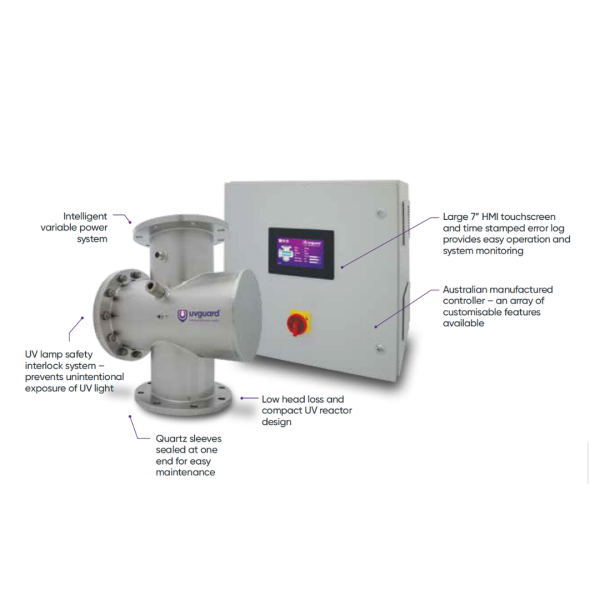

Performance-optimised medium-pressure UV treatment for commercial applications. UV Guard’s MPX-Series offers compact, high-performance medium-pressure UV systems for flows up to 1000m3/hr. Variable power polychromatic UV lamp drivers deliver market-leading efficiency with smooth automatic dimming for ‘Optimised’ and customised ‘User Profile’ power modes. The MPX-Series is ideal for commercial swimming pools, water features, industrial process water, wastewater and potable water applications.
Product Specifications
| Model | Disinfection Capacity | Chloramine Reduction Capacity | Inlet/Outlet |
| MPX20 | 30 m3/hr | 20 m3/hr | 2″, 3″ PN16 Flange |
| MPX35 | 53 m3/hr | 35 m3/hr | 3″, 4″ PN16 Flange |
| MPX50 | 72 m3/hr | 48 m3/hr | 4″, 5″ PN16 Flange |
| MPX70 | 108 m3/hr | 72 m3/hr | 4″, 5″ PN16 Flange |
| MPX90 | 134 m3/hr | 89 m3/hr | 5″, 6″ PN16 Flange |
| MPX100 | 149 m3/hr | 100 m3/hr | 5″, 6″ PN16 Flange |
| MPX120 | 179 m3/hr | 119 m3/hr | 6″, 8″ PN16 Flange |
| MPX190 | 284 m3/hr | 190 m3/hr | 8″ PN16 Flange |
| MPX250 | 374 m3/hr | 249 m3/hr | 8″, 10″ PN16 Flange |
| MPX310 | 463 m3/hr | 308 m3/hr | 10″ PN16 Flange |
| MPX390 | 589 m3/hr | 393 m3/hr | 10″ PN16 Flange |
| MPX650 | 981 m3/hr | 654 m3/hr | 12″ PN16 Flange |
| MPX820 | 1228 m3/hr | 819 m3/hr | 12″ PN16 Flange |
System Benefits –
Polychromatic UV Lamp technology delivers market-leading disinfection and breakdown of oxidants, Chloramines, Chlorine, TOC and Ozone
Intelligent ‘Optimised’ mode allows smooth automatic variable power of the UV Lamp according to changes in water quality
Large 7” HMI touchscreen and time stamped error log provides easy operation and system monitoring
Advanced energy efficiency with electronic UV lamp drivers for stepless variable power (14%-100%)
Compact footprint allows simple installation into existing plant rooms or new plant rooms in horizontal or vertical configurations
Convenient maintenance with UV Lamps and Quartz Sleeves easily accessible.
